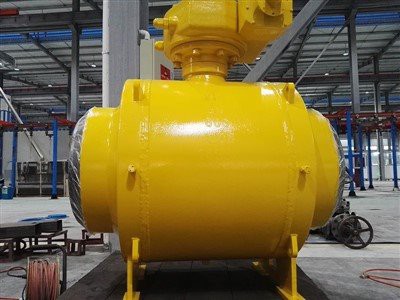

Mos Sealing Full Welded Pob Valve

Platinum valve muaj ntau yam ntawm tag nrho welded ob los yog peb-thooj sab-nruab pob li qub. Kev tsim kho lub cev tag nrho muab cov kev daws teeb meem sib zog thaum tseem tsis txhob muaj peev xwm xau mus rau qhov chaw sab nraud, kom ntseeg tau tias muaj kev tiv thaiv zoo ntawm tag nrho cov kab ke. Ib qho khoom siv ob chav trunnion configuration thiab ob lub rooj zaum ywj pheej nrog bidirectional sealing ua kom cov qib siab tshaj plaws ntawm kev nruj thiab kev ntseeg siab nyob rau hauv kev kub siab thiab kub kub hauv txhua qhov kev pabcuam cais tawm tseem ceeb. Ntau qhov tshwj xeeb muaj nyob rau muab cov kev daws teeb meem siab tshaj plaws tsim nyog rau cov txheej txheem qab zib lossis kua qaub los yog cov ntawv thov kav dej. Kev xaiv cov khoom siv yog customizable kom tau raws li cov neeg siv khoom qhov project specifications.

VALVE DESIGN

Raws li API 6D thiab cov neeg siv khoom xav tau

TEMPERATURE RANGE

-150 rau 428 degree F (-101 txog 220 degree)

SIZE

NPS 1-36 (DN 25-900)

NPAWG RATING

ASME 150 - ASME 2500

FACE-TO-FACE

Raws li API 6D tus qauv

QHOV CHAW UA HAUJ LWM

RF, RTJ raws li B16.5 & B16.47
BW, Butt Welded as per B16.25

Khoom siv:

Carbon Steel, Stainless Hlau, Tsis tshua muaj kub Carbon Steel, Duplex, Super Duplex, Inconel

CEEB TOOM

Forged bolted ob-thooj thiab peb-thooj

SEAT DESIGN

Mos zaum nrog Hard ntsej muag ntawm pob thiab rooj zaum

NTA

Ob chav thaiv thiab los ntshav tsim (DBB)
Secondary seals nyob rau hauv ntshiab Graphite
Anti-static ntaus ntawv
Anti-blowout qia
Kev txhaj tshuaj thaum muaj xwm txheej ceev ntawm lub rooj zaum thiab qia muaj
Tsawg fugitive emission qia packing muaj
CRA overlay ntawm tag nrho cov dynamic sealing qhov chaw los yog ntawm tag nrho cov wetted qhov chaw muaj
Kab txuas ntxiv rau kev teeb tsa hauv av

OPERATOR

Phau ntawv: ciaj ntswj los yog iav nrog padlocking
Ua haujlwm: Pneumatic / Hydraulic / Hluav taws xob

TESTING & CERTIFICATIONS

Ua raws li API 6D & ISO 5208 & API 598 kev tshuaj xyuas thiab kev sim
Hluav taws kub nyab xeeb thiab tua hluav taws kuaj raws li API 607
SIL 3 Daim ntawv pov thawj raws li IEC61508
Fugitive Emission raws li ISO15848
PEB 2014/68/UE
