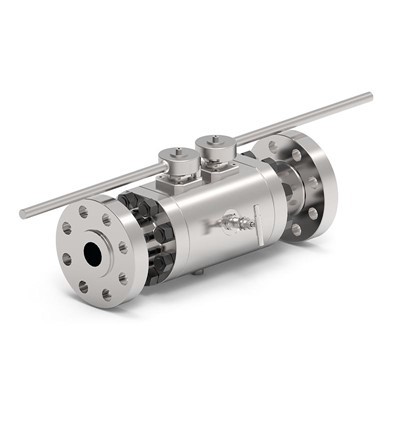

Mos Sealing Ob Chav Thaiv & Ntshav Pob Valve

Mos Sealing Ob Chav Thaiv & Ntshav Pob Valve siv cov khoom sib khi mos (xws li polytetrafluoroethylene PTFE, thiab lwm yam) raws li lub sealing nto, nrog kev ua tau zoo sealing thiab corrosion kuj. Lub valve yog tsim los rau cov ntawv thov kev lag luam uas xav tau kev nyab xeeb thiab kev ntseeg siab, xws li roj, roj, tshuaj lom neeg, lub zog, thiab lwm yam, tshwj xeeb tshaj yog qhov kev khiav tawm ntawm kev tawm tsam yuav tsum tau tswj.

VALVE DESIGN

API 6D, API 6A, ASME B16.34, ISO 14313, ISO 10423, ISO 17292

TEMPERATURE RANGE

-58 rau 392 degree F (-50 txog 200 degree)

SIZE

NPS 1-12 (DN 25-300)

NPAWG RATING

ASME 150 - ASME 2500

FACE-TO-FACE

Raws li API 6D tus qauv

QHOV CHAW UA HAUJ LWM

RF, RTJ raws li B16.5 & B16.47
BW, Butt Welded as per B16.25
SW, Socket Welded raws li B16.11

Khoom siv

Tsawg Kub thiab Tsawg Alloy Carbon Steel

Stainless hlau, Duplex thiab Super Duplex

Nickel alloys, Titanium

CEEB TOOM

Forged thiab casting bolted ob-thooj thiab peb-daim

SEAT DESIGN

Mos zaum nrog Hard ntsej muag ntawm pob thiab rooj zaum

NTA

Ob chav thaiv thiab los ntshav tsim (DBB)
Secondary seals nyob rau hauv ntshiab Graphite
Anti-static ntaus ntawv
Anti Blow tawm qia
Kev txhaj tshuaj thaum muaj xwm txheej ceev ntawm lub rooj zaum thiab qia muaj
Tsawg fugitive emission qia packing muaj
O-ring / di ncauj seals thiab graphite configuration
CRA overlay ntawm tag nrho cov dynamic sealing qhov chaw los yog ntawm tag nrho cov wetted qhov chaw muaj
Extended bonnet rau qis & siab kub muaj

OPERATOR

Phau ntawv: ciaj ntswj los yog iav nrog padlocking
Ua haujlwm: Pneumatic / Hydraulic / Hluav taws xob

TESTING & CERTIFICATIONS

Ua raws li API 6D & ISO 5208 & API 598 kev tshuaj xyuas thiab kev sim
Hluav taws kub nyab xeeb thiab tua hluav taws kuaj raws li API 607
SIL 3 Daim ntawv pov thawj raws li IEC61508
Fugitive Emission raws li ISO15848
PEB 2014/68/UE
